サイズ |
品 番 |
材質 |
A |
B |
C |
D |
ﾘﾝｸﾞ数 |
E |
ﾘﾌﾞ数 |
F |
PLATE
材質 |
PLATE
直径 |
PLATE
厚み |
40角 |
FG-40K-TR |
C1008 |
|
36.60 |
3.50 |
1.20 |
2 |
1.20 |
4 |
4.50 |
|
|
|
60角 |
FG-60K-TR |
C1008 |
70.70 |
53.50 |
4.30 |
1.20 |
3 |
1.20 |
4 |
4.00 |
|
|
|
80角 |
FG-80K-TR |
C1008 |
101.00 |
74.20 |
4.30 |
1.60 |
3 |
1.60 |
4 |
5.00 |
|
|
|
80角 |
FG-80-TR |
C1008 |
100.50 |
82.30 |
4.30 |
1.60 |
5 |
1.60 |
4 |
5.00 |
|
|
|
80角 |
FG-80P-TR |
C1008 |
101.00 |
74.20 |
4.30 |
1.60 |
3 |
1.60 |
4 |
5.00 |
SPCC |
32.00 |
1.00 |
90角 |
FG-90K-TR |
C1008 |
116.60 |
87.20 |
4.30 |
1.60 |
4 |
1.60 |
4 |
5.00 |
|
|
|
90角 |
FG-90-TR |
C1008 |
116.60 |
91.00 |
4.30 |
1.60 |
5 |
1.60 |
4 |
5.00 |
|
|
|
90角 |
FG-90P-TR |
C1008 |
116.70 |
93.20 |
4.30 |
1.60 |
6 |
1.60 |
4 |
5.00 |
SPCC |
32.00 |
1.00 |
120角 |
FG-120E-TR |
C1008 |
148.00 |
111.20 |
4.30 |
1.60 |
5 |
1.60 |
4 |
5.00 |
|
|
|
120角 |
FG-120-TR |
C1008 |
148.00 |
117.40 |
4.30 |
1.60 |
7 |
1.60 |
4 |
5.00 |
|
|
|
120角 |
PG-47-TR |
C1008 |
148.50 |
113.20 |
4.30 |
1.60 |
6 |
1.60 |
4 |
5.00 |
|
|
|
120角 |
FG-120P-TR |
C1008 |
148.50 |
113.20 |
4.30 |
1.60 |
6 |
1.60 |
4 |
5.00 |
SPCC |
32.00 |
1.00 |
150角 |
FG-150-TR |
|
162.00 |
139.20 |
4.30 |
1.60 |
7 |
1.60 |
4 |
5.00 |
|
|
|
150角 |
FG-150K-TR |
C1008 |
162.10 |
133.60 |
4.30 |
1.80 |
10 |
1.80 |
4 |
3.60 |
|
|
|
150角 |
FG-150P-TR |
C1008 |
162.60 |
140.10 |
5.50 |
1.60 |
11 |
1.60 |
4 |
6.30 |
SPCC |
21.30 |
0.80 |
|

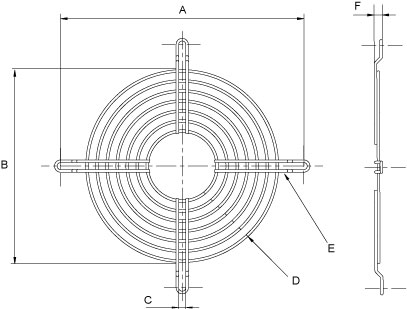

*A,B,C,D,E,F,PLATE直径、PLATE厚みの単位はミリ
|
